NYMPHA fürdőszobai radiátor, 600x1122mm, 485W, fehér (1805-16)

Ajánlott fogyasztói ár ÁFÁ-val
149 000 Ft /db
Megtakarítás 0,0 %
Az Ön ára ÁFA nélkül 117 323 Ft /db
Az Ön ára ÁFA-val 149 000 Ft /db
ÁFA 27%
Cseh készleten 3 db
MárkanévSapho
SzériaNYMPHA
Rendelési kód1805-16
Garancia24 hónap
Súly12,17 kg
SzínFehér
Szélesség600 mm
Magasság1122 mm
Csomag1 db
FormaE-forma
Ajánlott Fűtőpatron400 W
Fűtési LehetőségÚstřední vytápění;Elektrické vytápění;Kombinované vytápění
Bekötési Távolság, 50MmAszimmetrikus ( oldalra )
Bekötési Távolság50 mm
Hőmérsékleti Adatok75/65/20 °C

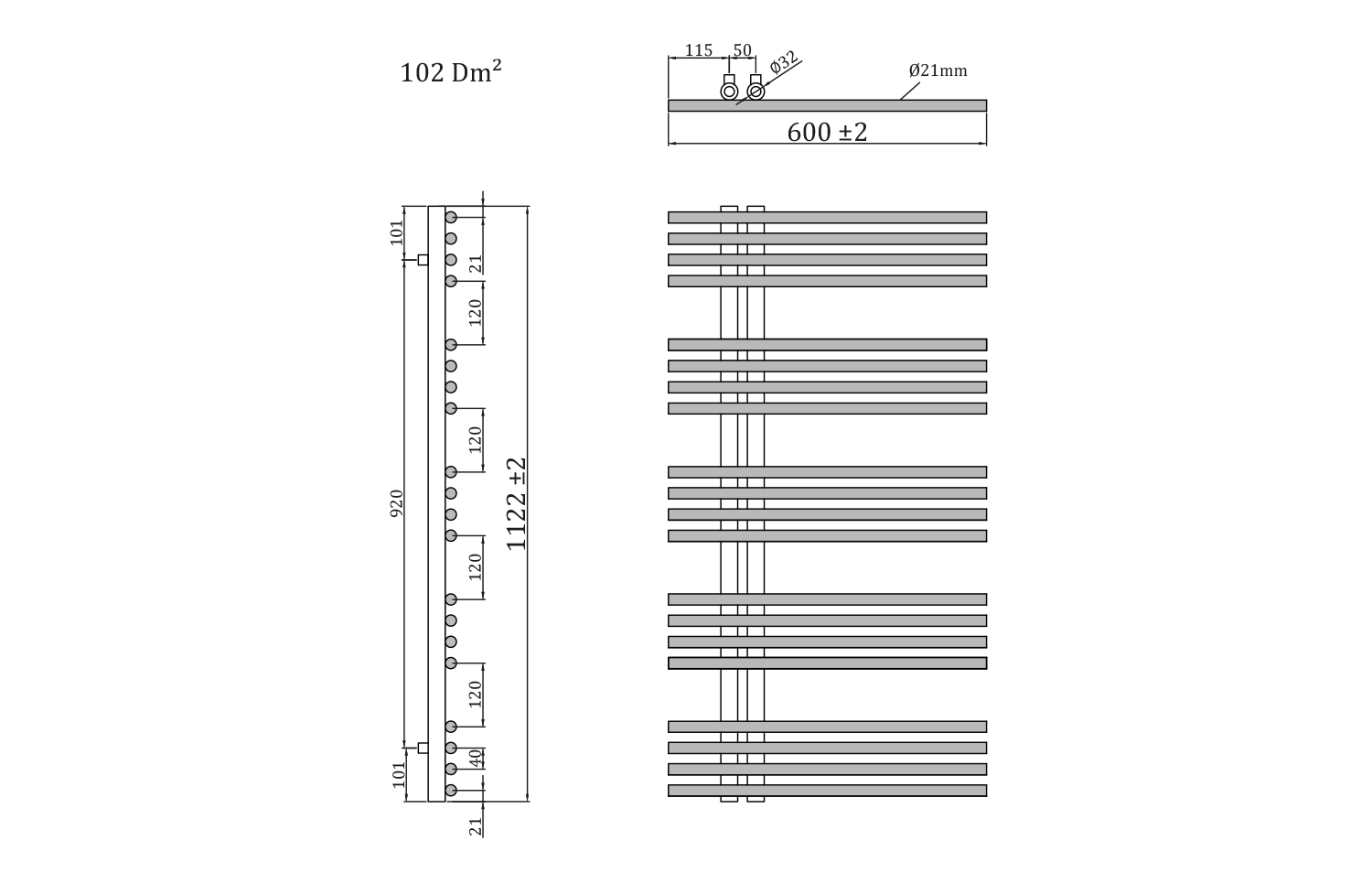

Méret600x1122 mm
Űrtartalom4.57 l
AlapanyagAcél
Teljesítmény485 W
Szerelés180°-ban elforgatható
Jótállás2 év

Classic pipes with a circular profile assembled into a design radiator, which can be combined with design valves from our offer thanks to the central connection with a spacing of 50 mm.
You will especially appreciate its practicality, thanks to its construction it allows easy and comfortable hanging of towels on horizontal bars.

  • The radiator is universal - it can be hung on both sides and you can choose the left or right installation variant
  • The heating rod and connecting valves are not part of the radiator

Central heating

In the case of central heating, the selection of the connection valves is very important. You can choose between using a manual valve or a valve with a thermostatic head.

Manual valve: the valve control head can be installed on the left/right side regardless of the hot water supply location. The temperatur eis controlled manually.
A valve with a thermostatic head: the integrated thermostat maintains the temperature inside the towel rail. The thermostatic head must be located at the hot water inlet (except MONO ONE).

The connection valves we offer are supplied with a clamping fitting for the most common pipes (O15 mm for copper and O16 mm for Alupex), so there is no need to buy anything else for the connection. For covering the inlet pipes and holes in the wall, we recommend the addition of cover rosettes.

Towel rail with a 50 mm connection spacing
Towel rail with side connection
Towel rail with a single-point connection

Electric heating

If the heater is only heated electrically, i.e. only a heating rod is used, a 1/2" radiator plug must be purchased additionaly. This serves to plug the other hole in the heater which would otherwise be used for the central heating connection valve. We recommend filling the heater with distilled water. It is also recommended to pour in the LIKIDO antifreeze and anti-corrosive heat transfer fluid.
It is necessary to use a heating rod with the same or similar performance according to the specification of the radiator. For heating rods with a thermostat, the temperature of the liquid in the heater is controlled.

Towel rail with a 50 mm connection spacing
Towel rail with side connection

Dual fuel heating

Dual fuel towel rails combine two types of heating - central and electric. They can be connected to the central heating system, and also to an electric socket. We recommend a heating rod with the same or similar performance according to the specification of the radiator.

If you have a heater with a central connection, in depends on whether the heating rod can be connected via a valve (in such case a combination valve is used) or whether the rod is connected separately to the side part of the radiator (using a conventional valve). In case of a side connection, a combination valve is always used. There is a choice of using a manual valve or a valve with a thermostatic head

Manual valve: the valve control head can be installed on the left/right side regardless of the hot water supply location. The temperatur eis controlled manually.
A valve with a thermostatic head: the integrated thermostat maintains the temperature inside the towel rail. The thermostatic head must be located at the hot water inlet (except MONO ONE).

The connection valves we offer are supplied with a clamping fitting for the most common pipes (O15 mm for copper and O16 mm for Alupex), so there is no need to buy anything else for the connection. For covering the inlet pipes and holes in the wall, we recommend the addition of cover rosettes.

Towel rail with a 50 mm connection spacing
Towel rail with side connection
Towel rail with a single-point connection
