Electronic bidet INUS LUX UB-7035RU-RC with remote control for your daily hygiene, maximum comfort, health and lifestyle. The bidet offers all the functions of a spray, including pulse rinsing and oscillating nozzle movement. Of course, there is individual adjustment of the nozzle position, pressure and water temperature, heated Soft close seat, automatic nozzle cleaning, hot air drying, IIP and Sitz bath health rinsing function, energy-saving mode that saves electricity. energy and your wallet and an odor extraction function that is activated when you sit down and a remote control for maximum comfort.

• Elegant remote control
• The only electronic bidet with instantaneous water heating in our offer.
• The most important is the "D" shape of the seat, which is adapted to the European market and the device fits most toilets of European manufacturers.

Function:

Anal rinsing	Feminine hygiene	Bidet function adapted for children	Air mix system for mixing water and air
IIP / Sitz Bath - medical washing and massage	Variable intensity setting water stream	Automatic nozzle cleaning after each use	Adjustable nozzle position
Heated seat with adjustable temperature	Water heating with adjustable temperature	Auto function - one button start rinsing and subsequent drying	Soft close folding seat for safe handling
Remote control	Controls on the left / right side of the device	The touch sensor in the seat activates the function	Made of antibacterial plastic
Easy installation, D shape and a size suitable for most European toilets	Energy saving mode and stand by	11 safety elements in the device	In accordance with standard EN1717
Hot air drying with adjustable temperature of air	Efficient odor extraction system

Installation:

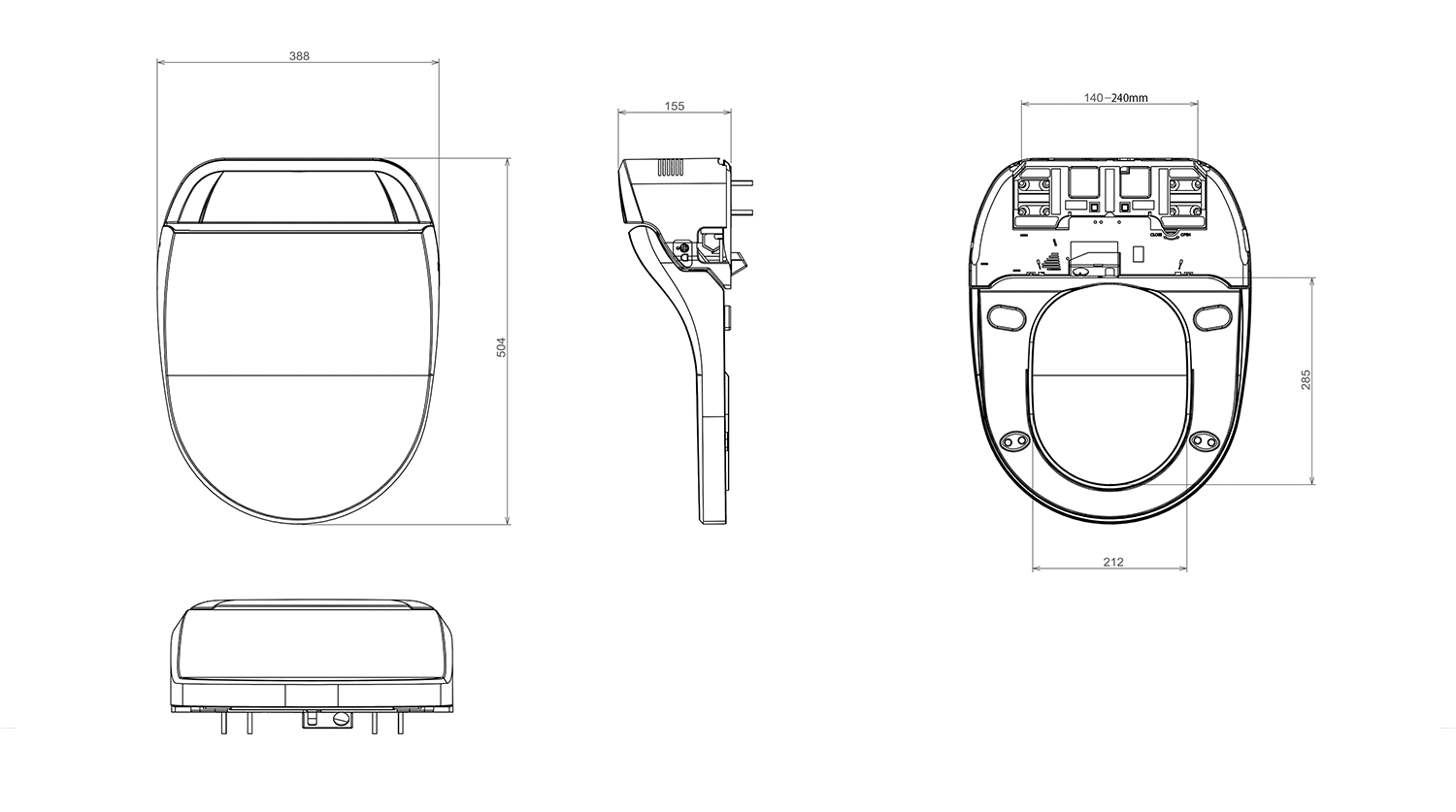

The bidet can be installed on your existing toilet bowl. To make sure that it will be suitable for your toilet bowl before purchasing a bidet, we recommend that you check whether the dimensions of this bowl correspond to the technical drawing - see the "Downloads" section. A 230V / 50Hz socket must be placed within 1.5 m of the bidet. The installation method is described in the operating instructions. The actual installation is very simple, the package contains everything you need. With the enclosed T-branch G1 / 2 and G3 / 8 and a flexible hose, the bidet is connected to the water supply G3 / 8 and A is connected to the socket. Sliding rails are installed in the mounting holes in the ceramics, which are used to install the toilet seat, by means of the enclosed screws, into which the bidet is slid.

Technical parameters:

• Power supply: 220-240V / 50-60Hz
• Max power consumption: 1660-1975 W
• Stand by power consumption 1 W - Power saving mode with seat heating switched off
• Power cable length: 1.5 m
• Water supply: Direct connection to water source G1 / 2, G3 / 8
• Water pressure: 50-740 kPa (5 levels)
• Water consumption: 0.65 +/- 0.1 l / min anal spray, 0.65 +/- 0.1 l / min women's spray
• Water heating: flow heating
• Water temperature range: normal temperature up to 40 ° C (4 levels)
• Air temperature: room temperature up to 60 ° C (5 levels)
• Seat temperature range: normal temperature up to 40 ° C (4 levels)
• Safety elements: thermostatic circuit breaker, thermal fuses, Bi-metal, seat sensor
• Weight: 4.2 kg
• Clamping spacing in ceramics: 140-240 mm
• Dimension: see technical drawing

Suitable for toilets:

• KERASAN - Flo (only wall-hung toilets)
• GSI - Pura, Norm, Cuba
• SAPHO - Paula, Brilla, Avva
• AQUALINE - Modis, Juan
• CERSANIT - Etiuda
• JIKA - Lyra Plus (only wall-hung toilets), Cubito, Mio, Mio WC combi extended, Olymp
• LAUFEN - Laufen Pro (only wall-hung toilets), Form, Duo
• ROCCA - Nexo, Victoria
• VILEROY BOCH - Omnia, O-novo
• KERAMAG - I-con, Renova, 4U, Xeno
• KOLO - Quattro, Prima, Novo Top

Template:
To verify the suitability of your existing toilet, you can use the template, which you will find in the "Download" section - the "Other" document. All you have to do is print in real size, connect the individual parts together and attach them to the toilet.
