Electronic bidet INUS UB-7235RU for your daily hygiene, maximum comfort, health and lifestyle. The bidet offers all the functions of a spray, including pulse rinsing and oscillating nozzle movement. Of course, there is individual adjustment of the nozzle position, pressure and water temperature, heated Soft close seat, automatic nozzle cleaning, hot air drying, IIP and Sitz bath health rinsing function, energy-saving mode that saves electricity. energy as well as your wallet and the odor extraction function, which is activated when you sit down.

• Electronic bidet with instantaneous water heating
• The most important is the "D" shape of the seat, which is adapted to the European market and the device fits most toilets of European manufacturers.

Function:

Anal rinsing	Feminine hygiene	Bidet function adapted for children	Air mix system for mixing water and air
IIP / Sitz Bath - health washing and massage	Variable setting of water flow intensity	Automatic nozzle cleaning after each use	Adjustable nozzle position
Heated seat with adjustable temperature	Water heating with adjustable temperature	Auto function - start rinsing and subsequent drying with one button	Soft close folding seat for safe handling
Controls on the right side of the device	The touch sensor in the seat activates the function	Made of antibacterial plastic	Easy installation, D shape and size suitable for most European toilets
Power save mode to save energy in standby	11 safety elements in the device	In accordance with standard EN1717	Hot air drying with adjustable air temperature
Efficient odor extraction system

Installation:
The bidet can be installed on your existing toilet bowl. To make sure that it will be suitable for your toilet bowl before purchasing a bidet, we recommend that you check whether the dimensions of this bowl correspond to the technical drawing - see the "Downloads" section. A 230V / 50Hz socket must be placed within 1.5 m of the bidet. The installation method is described in the operating instructions. The actual installation is very simple, the package contains everything you need. The enclosed G1 / 2 and G3 / 8 T-branch and flexible hose connect the bidet to the G3 / 8 water supply and plug it into an outlet. Sliding rails are installed in the mounting holes in the ceramics, which are used to install the toilet seat, by means of the enclosed screws, into which the bidet is slid.

Technical parameters:

• Power supply: 220-240V / 50-60Hz
• Max power consumption: 1660-1975 W
• Stand by power consumption 1 W - Power saving mode with seat heating switched off
• Power cable length: 1.5 m
• Water supply: Direct connection to water source G1 / 2, G3 / 8
• Water pressure: 50-740 kPa (5 levels)
• Water consumption: 0.65 +/- 0.1 l / min anal spray, 0.65 +/- 0.1 l / min women's spray
• Water heating: flow heating
• Water temperature range: normal temperature up to 40 ° C (4 levels)
• Air temperature: room temperature up to 60 ° C (5 levels)
• Seat temperature range: normal temperature up to 40 ° C (4 levels)
• Safety elements: thermostatic circuit breaker, thermal fuses, Bi-metal, seat sensor
• Weight: 4.2 kg
• Clamping spacing in ceramics: 140-240 mm

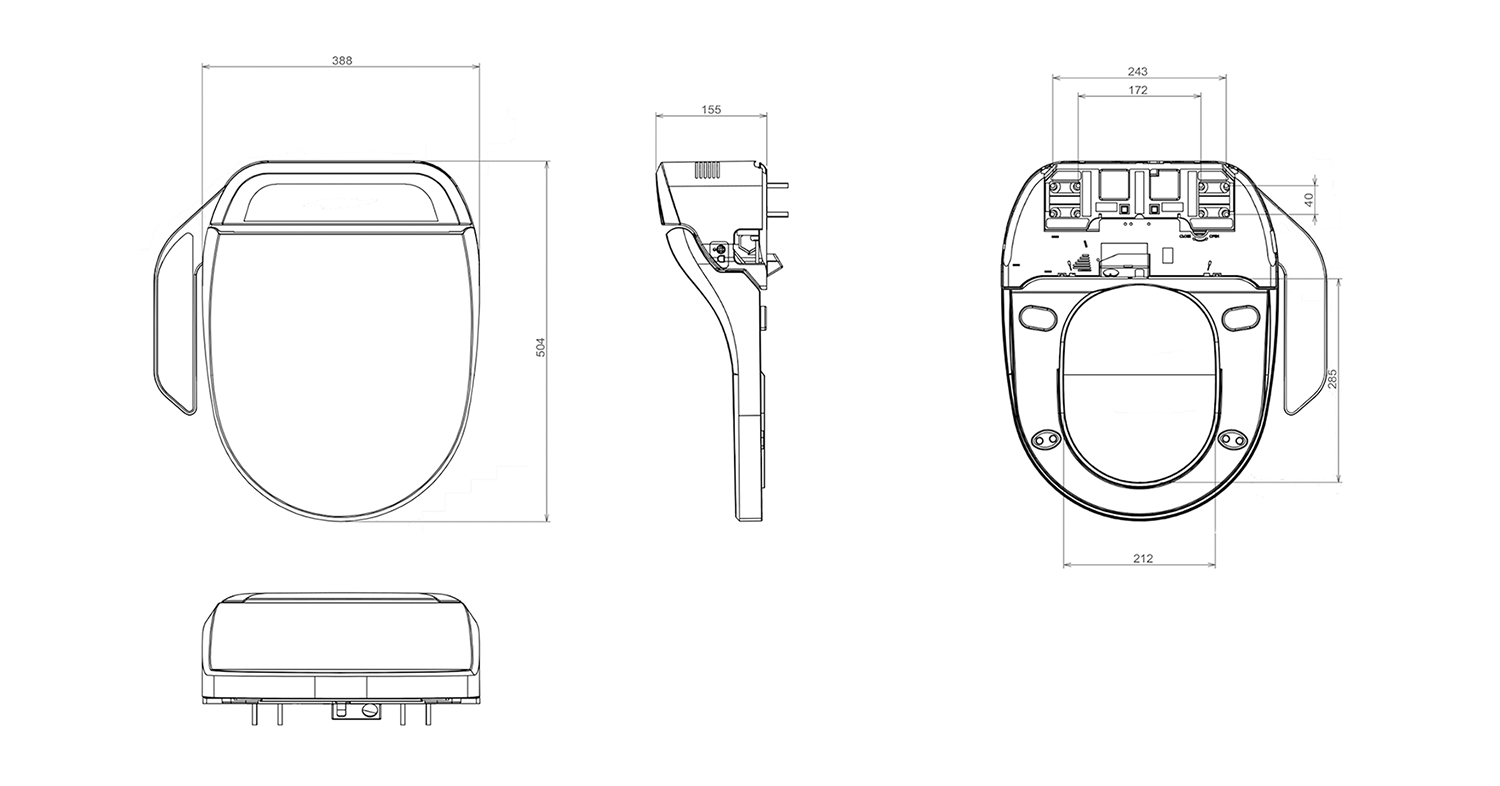

• Dimension: see technical drawing

Toilets for which the electronic bidet is suitable, you will find in the attached file.

Template:
To verify the suitability of your existing toilet, you can use the template, which you will find in the "Download" section. All you have to do is print in real size, connect the individual parts together and attach them to the toilet.
