MODULE MS2 - Fixed wall (part A)

• Wall mounting
• For connecting an additional fixed panel (left or right variant)
• Installation dimension: 776-801 mm

In order to create a two-part "L" -shaped screen, it is necessary to purchase an additional fixed panel MS2B to the solid wall.
According to the dimensions of the additional panel MS2B it is necessary to buy a strut:

• For dimensions up to 60 cm part B (MS2B) any strut can be used
• For longer wing (MS2B) it is necessary to use strut MSBR1 or MSBR3 or a combination of struts MSBR1 and MSBR4 for stability

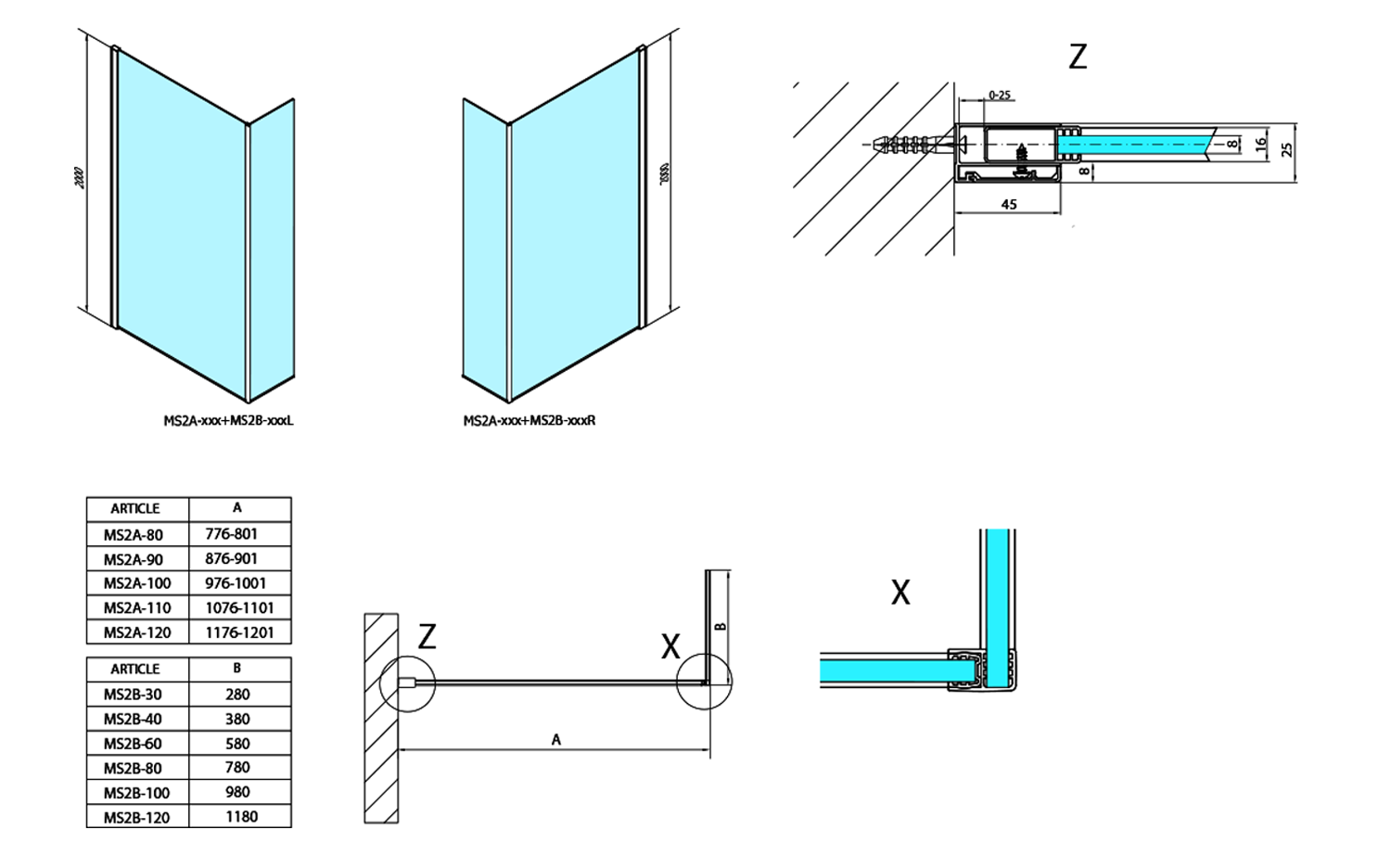

Characteristics of the overall Module MS2 - Two-part L-shaped wall - solid wall with an additional fixed panel

This module consists of two parts - A and B. Both parts are solid, fixed to the floor with silicone.

Part A:

• It is a solid wall made of clear glass and a wall profile with 0-30 mm adjustment for wall mounting
• It is universal for left and right versions and is available in five sizes.

Part B:

• There is an additional fixed panel with a connecting "U" profile to part A
• We offer in six widths, in right and left variants

In total, Module 2 can be combined in 30 variants.

The modular solution enables many combinations of the position of the shower corner , for example :

The Modular shower screen concept offers glass modules with profiles for easy assembly. The glass is equipped with an aluminum profile on the bottom, which gives the screens an elegant look, seals better and facilitates handling and installation. Depending on the dimensions of the glasses, it is always necessary to purchase the necessary strut to ensure the stability of the screen. The struts are made of stainless steel and can be shortened as desired, the cut is hidden in the end parts (except for the corner struts, which cannot be adjusted).
We recommend ASC cleaning and protective agent, 94000, for cleaning the glasses.

Characteristics of shower screens of the MODULAR SHOWER series:

• Clear safety glass with a thickness of 8 mm
• Antidrop surface treatment prevents limescale build-up and makes cleaning easier
• Aluminum profiles in chrome or matt black finish
• Perpendicular brace made of stainless steel in chrome or matt black
• Shortenable struts (except corner struts)
• Easy assembly, tolerance up to 30 mm by adjusting the glass in the profile
• Height 2000 mm
• Variability in the design of the glasses and the assembly of the shower corner

The wall profile allows adjustment tolerance
0-30 mm

The glass is equipped with an aluminum profile on the bottom, which gives the screens an elegant look, seals better and facilitates installation.
